Regression with ARMA errors

Author: Rutger Lit
Date: July 05, 2022
Software: Time Series Lab - Home Edition
Topics: Linear regression with ARMA errors
Batch program: regression_with_arma_errors.txt

Linear regression with ARMA errors

TSL makes extensive use of models in state space form due to the many advantages this brings. Once a model has been put in a state space form, the way is opened for the application of a number of important algorithms. At the centre of these is the Kalman filter. The Kalman filter is a recursive procedure for computing the optimal estimator of the state vector at time $t$, based on the information available at time $t$, see also Harvey (1990).
The dynamics of state space models come from stochastic components, see also Appendix B of the manual. If the components are deterministic (meaning the error terms of the state components have variance zero and therefore disappear from the equation), the Kalman filter would be equivalent to the ordinary least square (OLS) recursions. This means that if you would only include explanatory variables in TSL and no time-varying components you would be estimating a standard regression model as given by \[ y_i = \alpha + X_i \beta + \varepsilon_i, \qquad i = 1,\ldots,n. \] The estimates of $\beta$, denoted by $\hat{\beta}$, are quickly found with the equation \[ \hat{\beta} = (X'X)^{-1}X'y \] and you normally would not use the Kalman filter to find $\hat{\beta}$. However, the results from the Kalman filter should be exactly the same as the $\hat{\beta}$ from above and it is illustrative to see the results from the static regression model in TSL. These results will later be extended with ARMA(p,q) errors.

Regression model in TSL

Load the El Nino dataset which can be found in the data folder located in the install folder of TSL. Select the EN3.4 series from the loaded data set. Go to the Build you own model page and switch-on the Explanatory variables and select all variables except the Date variable from the pop-up window. If you need to include a constant in the regression model, you can add a column of ones to the dataset but more convenient is just to add a fixed Level component to the model. A fixed Level component is in this scenario exactly the same as the constant $\alpha$ in the standard regression model above. Go to the Estimation page and estimate the model. The result should be:

Regression coefficients:

Beta                               Value        Std.Err         t-stat           Prob
beta_RB                           0.1591         0.0510         3.1229         0.0019
beta_WPAC                        -0.1293         0.1998        -0.6470         0.5180
beta_WPAC2                        0.9271         0.2026         4.5750     6.4481e-06
beta_WPAC3                       -0.1793         0.1903        -0.9419         0.3468
beta_WPAC4                       -0.3629         0.1686        -2.1525         0.0320
beta_50fin                        0.5637         0.2164         2.6046         0.0096
beta_100cold                     -0.0055         0.0256        -0.2166         0.8286
beta_100fin1                     -0.1267         0.0915        -1.3848         0.1669
beta_100fin2                     -0.4103         0.0824        -4.9781     9.7349e-07
beta_150fin1                     -0.2586         0.1310        -1.9738         0.0491
beta_150fin2                      0.1432         0.0693         2.0656         0.0395
beta_200fin1                      0.2533         0.1456         1.7403         0.0826
beta_200fin2                     -0.0347         0.1005        -0.3454         0.7300
beta_250fin1                      0.2143         0.1494         1.4346         0.1522
beta_250fin2                     -0.0651         0.1389        -0.4688         0.6395
beta_300fin1                     -0.1427         0.2210        -0.6458         0.5188
beta_300fin2                     -0.1130         0.2308        -0.4894         0.6248
beta_400fin1                     -0.3206         0.2428        -1.3202         0.1876
beta_400fin2                      0.1122         0.2680         0.4186         0.6758
beta_500fin1                     -0.6584         0.2839        -2.3193         0.0209
beta_500fin2                     -0.3397         0.2786        -1.2193         0.2235
beta_wnd160.200_0.10            -33.6202         2.8740       -11.6982         0.0000
beta_wnd180.220_-4.4             86.0116         5.3723        16.0103         0.0000
beta_wnd180.210_-10.0           -16.4366         4.5229        -3.6341     3.1714e-04

State vector at period 2015-11-01:

Component                          Value        Std.Err         t-stat           Prob
Level                              28.02          3.808          7.358     1.1555e-12

which is exactly equal to the OLS estimate $\hat{\beta}$ as we would calculate it from $\hat{\beta} = (X'X)^{-1}X'y$.

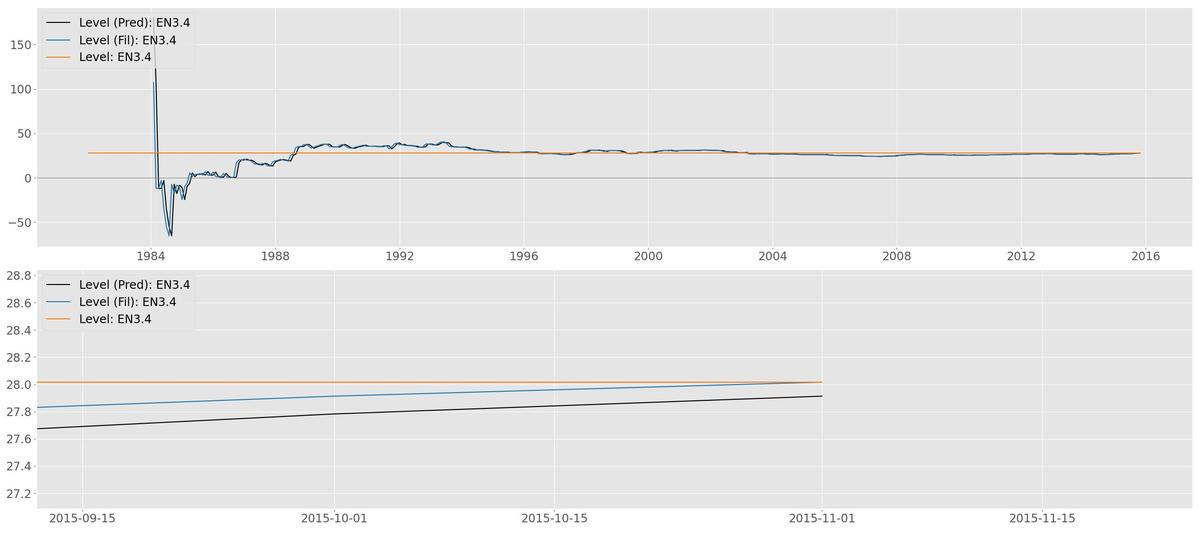

But what does Predicting, Filtering, and Smoothing mean in the case of the regression model we just estimated? Remember that, being in time point $t$, Predicting uses the data up to time $t−1$, Filtering the data up to time $t$, and Smoothing uses all the data. If we would plot the fixed level (constant $\alpha$) for Predicting, Filtering, and Smoothing we see that Smoothing gives a straight line while Predicting, Filtering build the level up over time to the end of the data set, see also the figure below. With the above logic, the estimates for Filtering and Smoothing should be the same at time $t=T$ when all data is used. If we look at the bottom panel of the figure we see that this is indeed the case.

Predicted, Filtered, and Smoothed constant in regression model

Data inspection and preparation page

If you would like to end up with a set of only significant variables, based on a user-specified t-stat bound, you can select the Automatically option for the explanatory variables on the Build your own model page. Estimating the model leads to the following estimates.

Regression coefficients:

Beta                               Value        Std.Err         t-stat           Prob
beta_RB                           0.1692         0.0474          3.570     4.0098e-04
beta_WPAC2                        0.9083         0.1476          6.153     1.8695e-09
beta_WPAC4                       -0.5950         0.1118         -5.322     1.7235e-07
beta_50fin                        0.4916         0.1719          2.860         0.0045
beta_100fin1                     -0.1781         0.0533         -3.344     9.0407e-04
beta_100fin2                     -0.3515         0.0643         -5.466     8.1630e-08
beta_150fin2                      0.0894         0.0320          2.795         0.0054
beta_500fin1                     -0.9462         0.2136         -4.430     1.2228e-05
beta_wnd160.200_0.10            -35.4201         2.2560        -15.701         0.0000
beta_wnd180.220_-4.4             92.1050         4.6275         19.904         0.0000
beta_wnd180.210_-10.0           -20.3677         3.8036         -5.355     1.4566e-07

State vector at period 2015-11-01:

Component                          Value        Std.Err         t-stat           Prob
Level                              24.19          2.799          8.640     2.2204e-16

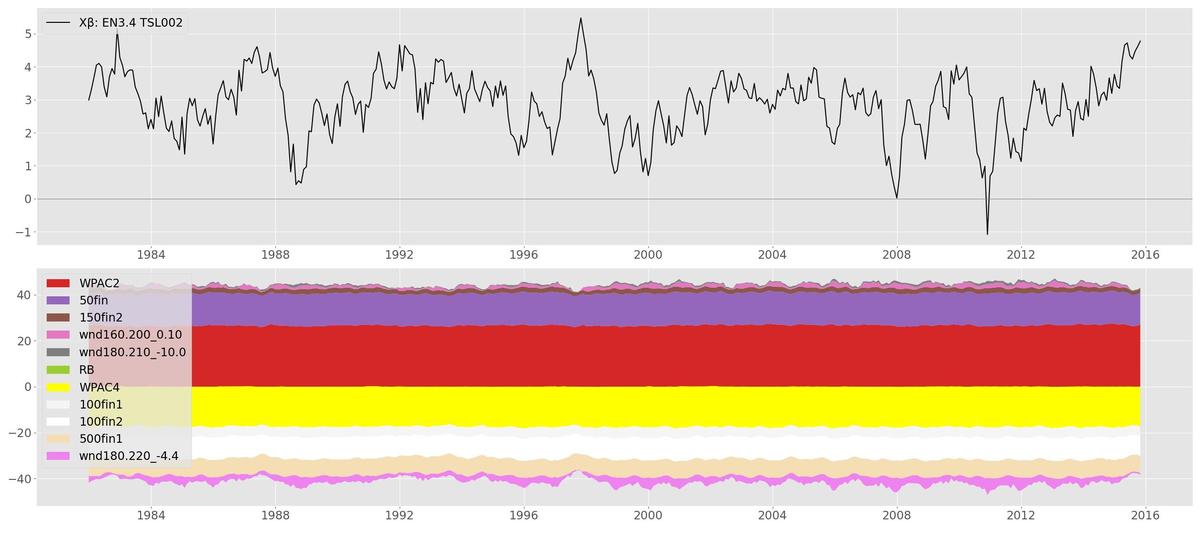

from which we can see that all variables are significant with an absolute t-stat of at least 2.795. The following figure shows the contribution of all X's combined $(X \hat{\beta})$ in the top panel and the individual contributions of the X's in a sandgraph in the bottom panel.

Contribution of all significant X's in a Sandgraph

Data inspection and preparation page

Regression model with ARMA(p,q) errors

The ACF plot of the predicted residuals shows that there is first and second lag autocorrelation left in the residuals. We can combat this by introducing ARMA(p,q) errors in the model. Select an additional ARMA(2,1) model from the Build your own model page, select all variables except the Date variable, set Explanatory variables to automatic and Estimate the model. The output is:

Variance of disturbances:

Variance type                      Value        q-ratio
Level variance                    0.0000              0
ARMA variance                     0.0769              1

ARMA properties:

Parameter type                     Value
Unconditional variance            1.0645
AR2 phi1                          1.6105
AR2 phi2                         -0.7024
MA1 theta1                       -0.1509

Regression coefficients:

Beta                               Value        Std.Err         t-stat           Prob
beta_WPAC3                        0.6416         0.1025          6.258     1.0117e-09
beta_WPAC4                       -0.2615         0.0889         -2.941         0.0035
beta_150fin2                     -0.1771         0.0412         -4.304     2.1204e-05
beta_200fin1                      0.1417         0.0423          3.345     9.0050e-04
beta_250fin2                      0.3072         0.0981          3.133         0.0019
beta_wnd160.200_0.10             -5.5813         1.4499         -3.849     1.3797e-04
beta_wnd180.220_-4.4             11.9443         2.6044          4.586     6.0621e-06
beta_wnd180.210_-10.0            -6.6402         2.0543         -3.232         0.0013

State vector at period 2015-11-01:

Component                          Value        Std.Err         t-stat           Prob
Level                             14.058         1.5445          9.102              0
ARMA(p,q)                          1.990         0.1953         10.189              0

The ACF show no residual correlation in the first lags but the 12th lag has a large spike. This is due to the missing of a seasonal component. Additional measures can be lagged explanatory variables or a monthly seasonal component.



Durbin, J. and Koopman, S. J. (2012). Time series analysis by state space methods. Oxford university press.

Harvey, A. (1989). Forecasting, Structural Time Series Models and the Kalman Filter. Cambridge: Cambridge University Press. doi:10.1017/CBO9781107049994
